Home > Selective hard gold PCB > Selective hard gold PCB

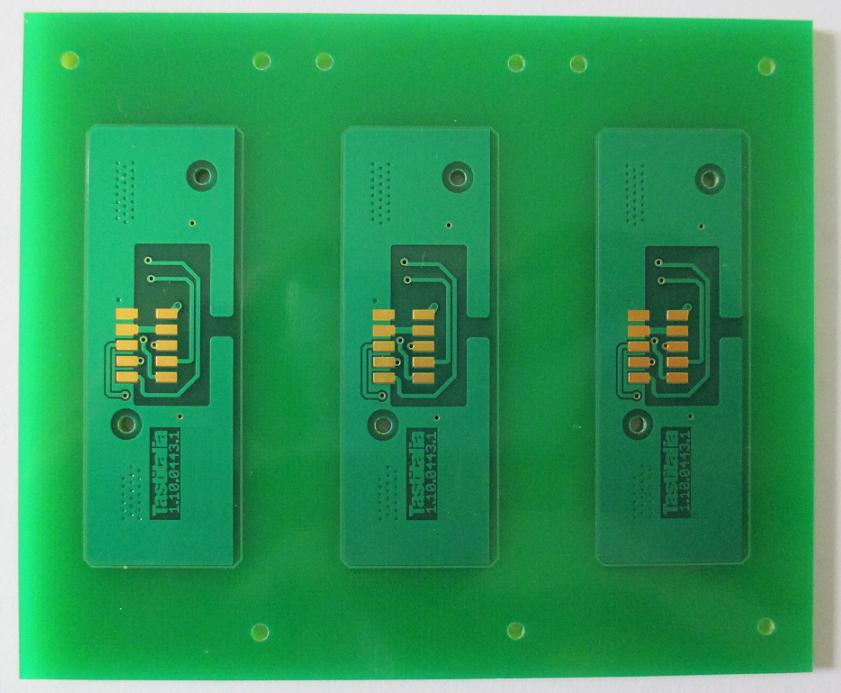

Selective hard gold PCB

Model:E0214041027A
Layers:6 layer
Thickness: 2.4mm
Hole Size: 0.3 mm
Width/Space: 4/4mil
Surface Treatment: ENIG + selective hard gold
  • Process
  • Applications
  • Name: selective hard gold printed circuit board
    Part No.: E0214041027A
    Layer count: 6
    Material: FR4 , 2.4mm, TG 170, 1 OZ  for all layer
    Minimum tack: 4mil
    Minimum space(gap): 4mil
    Minimum hole: 0.20mm
    Surface finished: Selective hard gold( Au 30 U")
    Panel size: 120*108mm/36up
    Characteristics: Selective hard gold PCB, high TG, blind via, mechanical drill control depth

  • industrial control
