Home > Aluminum base PCB > 2 layer aluminum base PCB, LED PCB

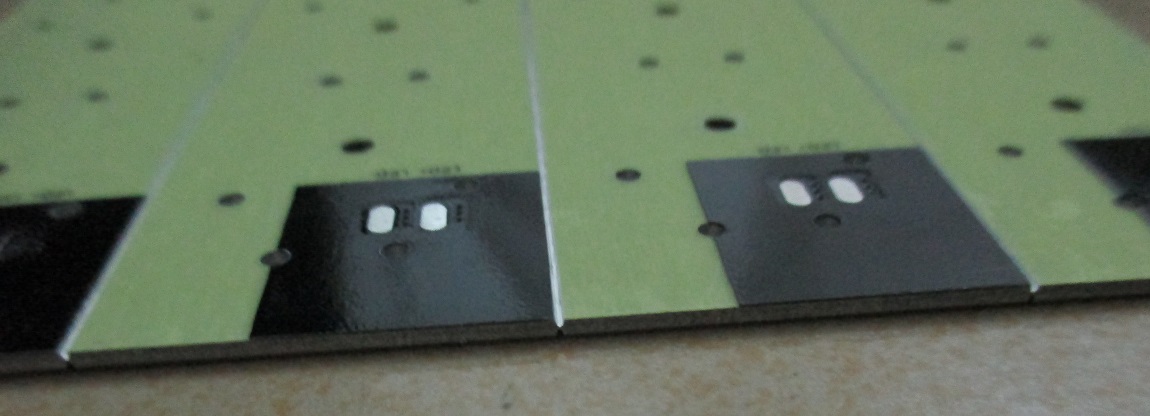

2 layer aluminum base PCB, LED PCB

Model:A002H1889002A
Layers:2 layer
Thickness: 1.6mm
Hole Size: 0.4mm
Width/Space: 12mil
Surface Treatment: lead free HASL
  • Process
  • Applications
    • 2 layer aluminum base PCB, contersink PCB, LED PCB
    • Layer count: 2
      Material: Aluminum , 1.6mm, thermal conductive 2 W, 1 OZ  for all layer
      Minimum tack: 12mil
      Minimum space(gap): 12mil
      Minimum hole: 0.40mm
      Surface finished: LF HASL

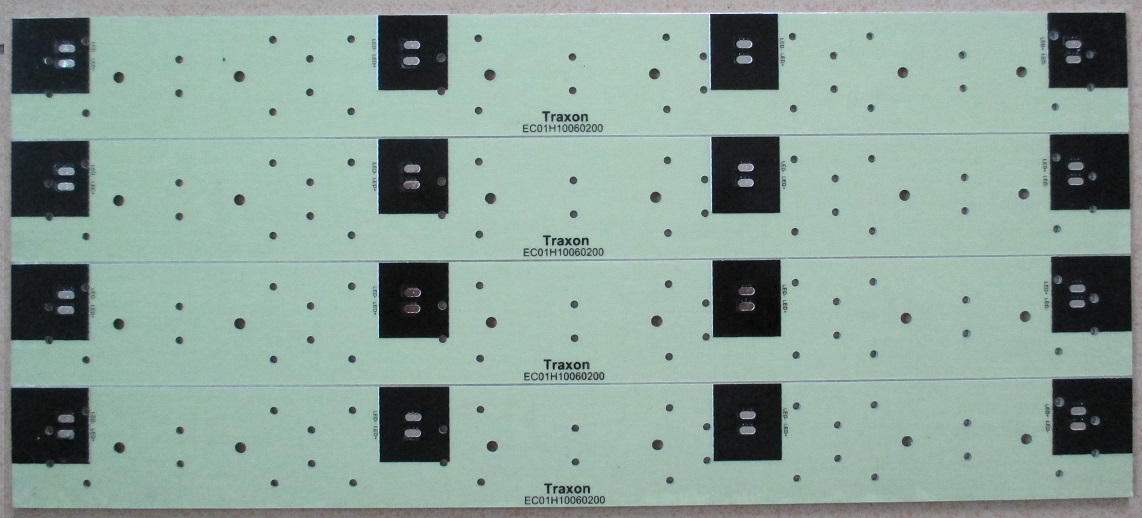

      Panel size:324.27*166.5mm/5up

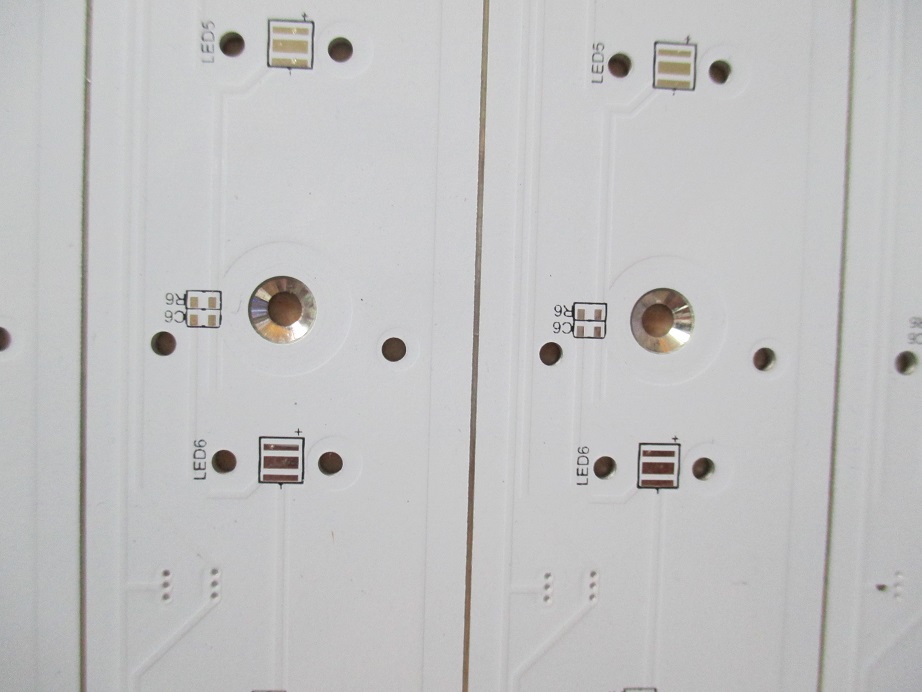

      Characteristics: 2L aluminum base PCB, contersink pcb. white corlor led pcb
  • LED

1 Hours promptly Quote
4 Hours promptly Engineering
24 Hours for 2 layer
2-5 Days for 4-20 layer
6-10 Days for 22+ layers
7*24 Hours online customer service

Flexible PCB up to 12 layer

Rigid Circuit Boards up to 48 layer

Rigid-Flex Circuit Boards up to 36 layer

Metal core printed circuit board 1-6 W/MK

High Density(HDI)Circuit Boards(Max 4 ranks) 		Plant 1 add: Shenzhen, Guangdong, China
