Home > Gold finger PCB > board edge connector printed circuit board

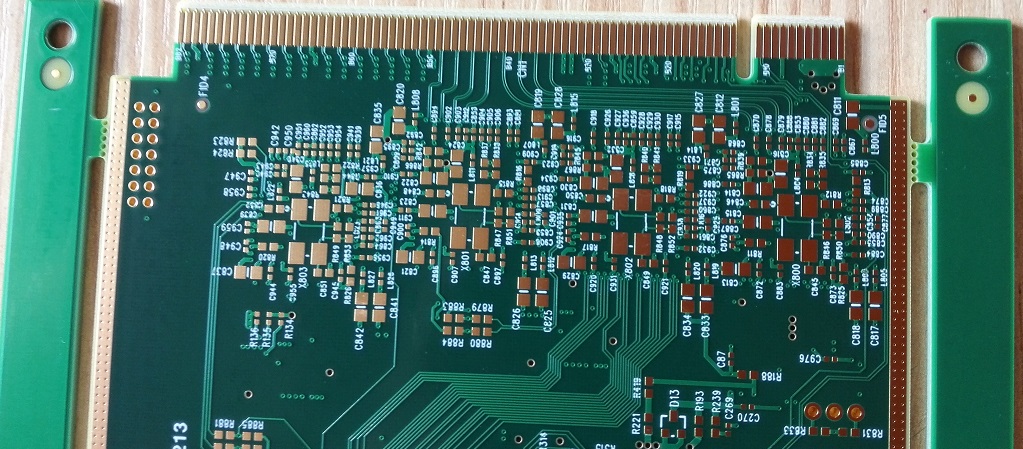

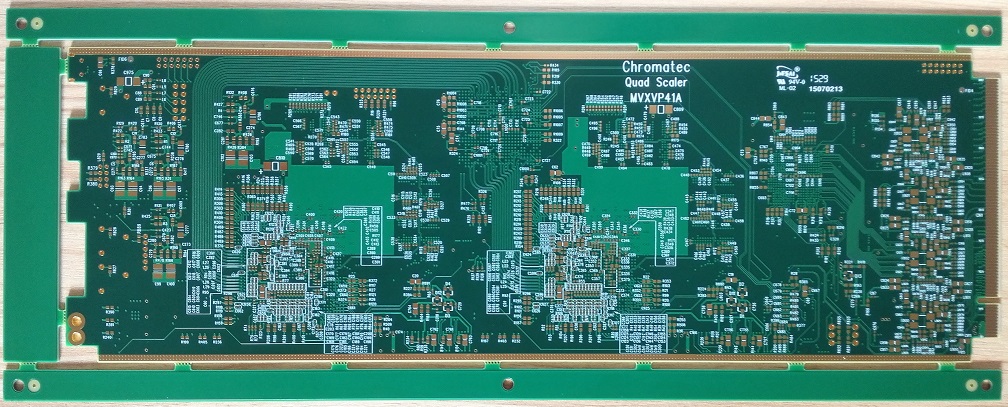

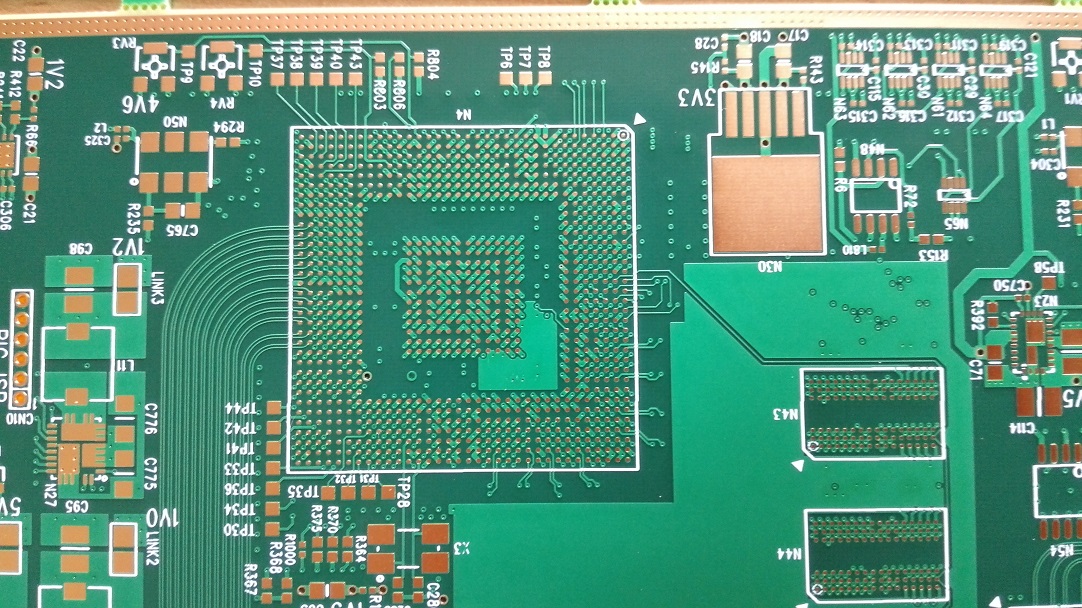

board edge connector printed circuit board

Model:E1014040027A
Layers:12 layer
Thickness: 1.6 mm
Hole Size: 0.20 mm
Width/Space: 3/3 mil
Surface Treatment: ENIG + HARD GOLD
  • Process
  • Applications

  • board edge connector printed circuit board, 2.5 UM hard gold thickness PCB
    Part No.:  E1014040027A

    Layer count: 12
    Material:FR4,  TG180, 1.6mm, , 1 OZ  for all layer
    Minimum tack: 3mil
    Minimum space(gap): 3mil
    Minimum hole: 0.20mm
    Surface finished: ENIG + gold finger( Au 100 U")
    Panel size: 420*138mm/1up
    Characteristics: board edge connector printed circuit board, 100U" hard gold thickness PCB, multilayer PCB

  • board edge connector printed circuit board, 2.5 UM hard gold thickness PCB

1 Hours promptly Quote
4 Hours promptly Engineering
24 Hours for 2 layer
2-5 Days for 4-20 layer
6-10 Days for 22+ layers
7*24 Hours online customer service

Flexible PCB up to 12 layer

Rigid Circuit Boards up to 48 layer

Rigid-Flex Circuit Boards up to 36 layer

Metal core printed circuit board 1-6 W/MK
